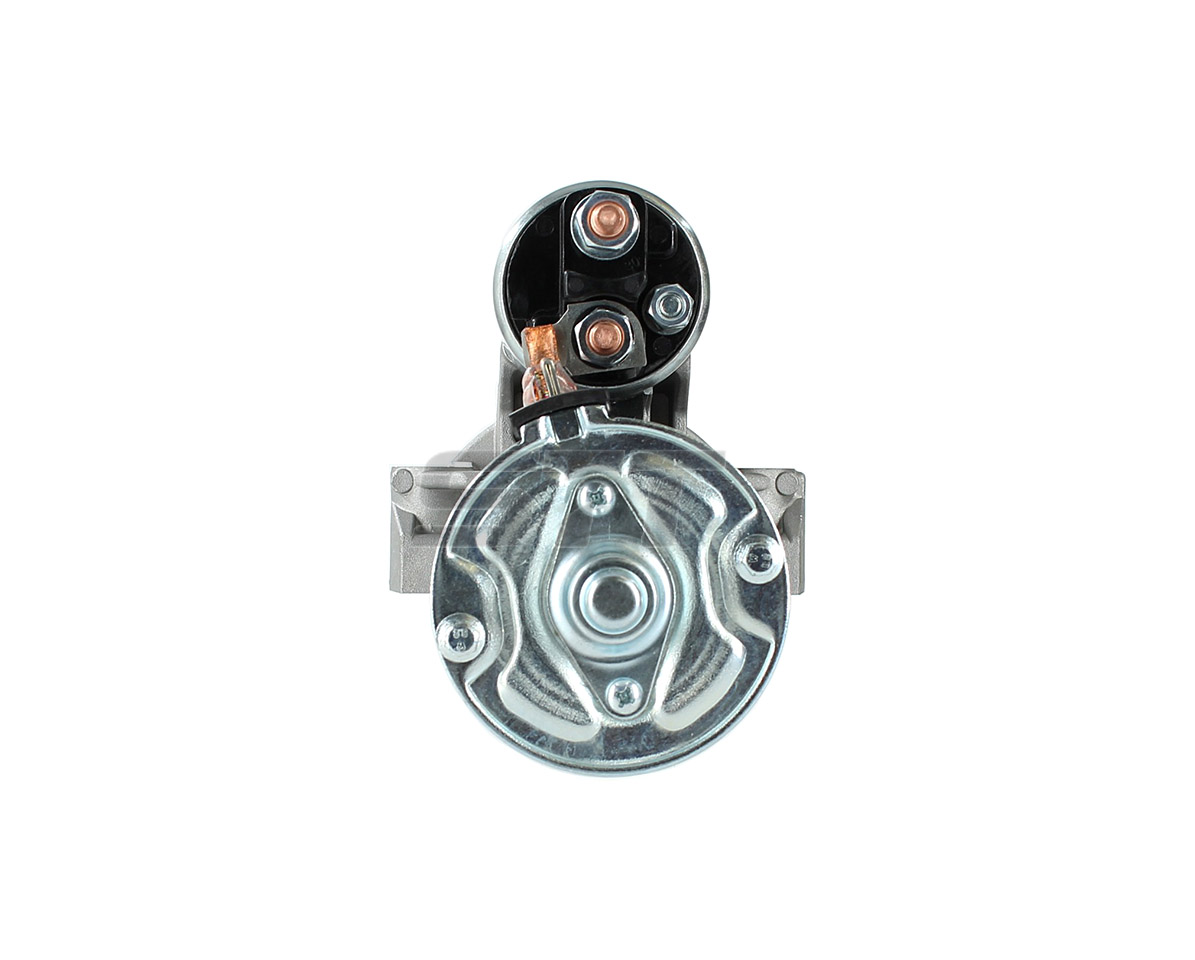

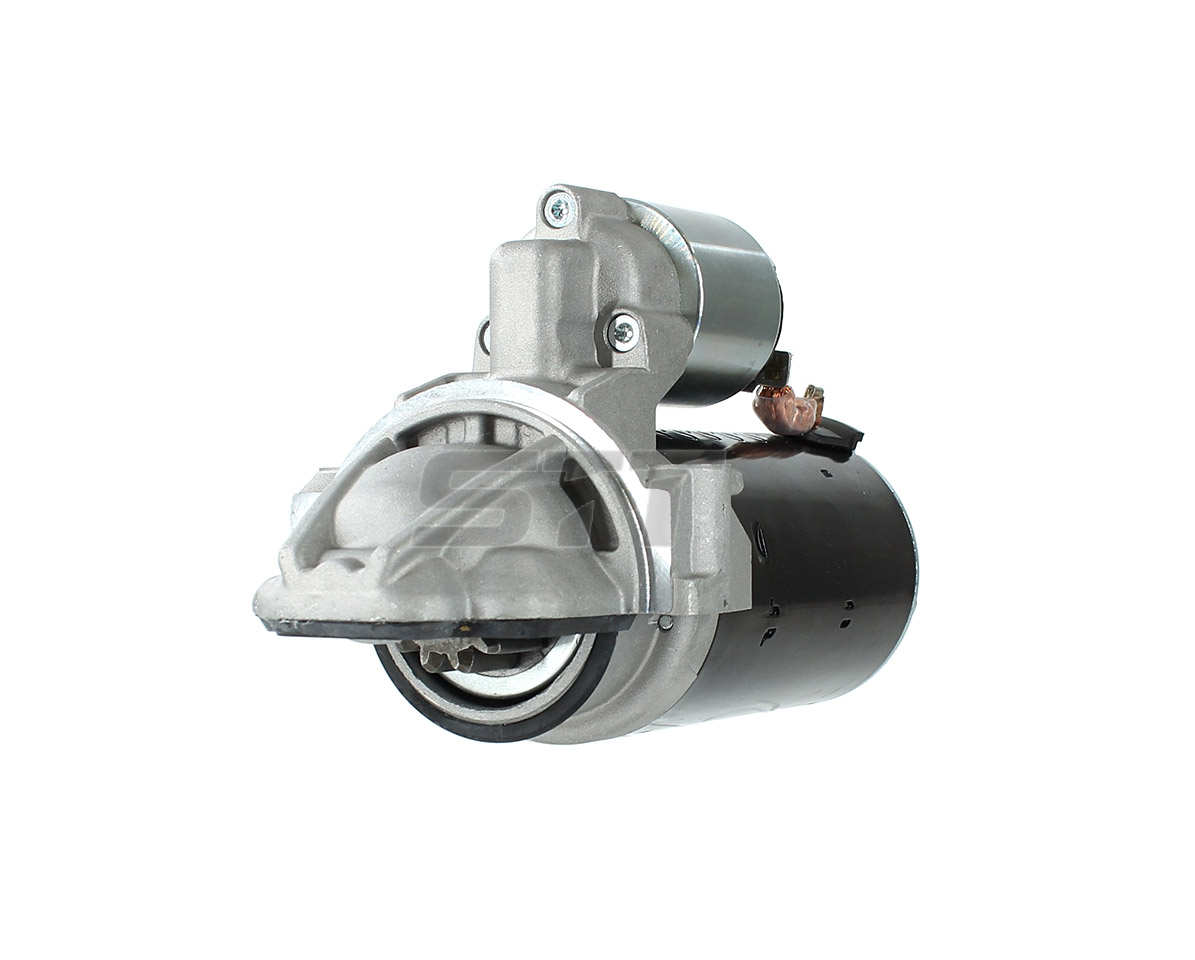

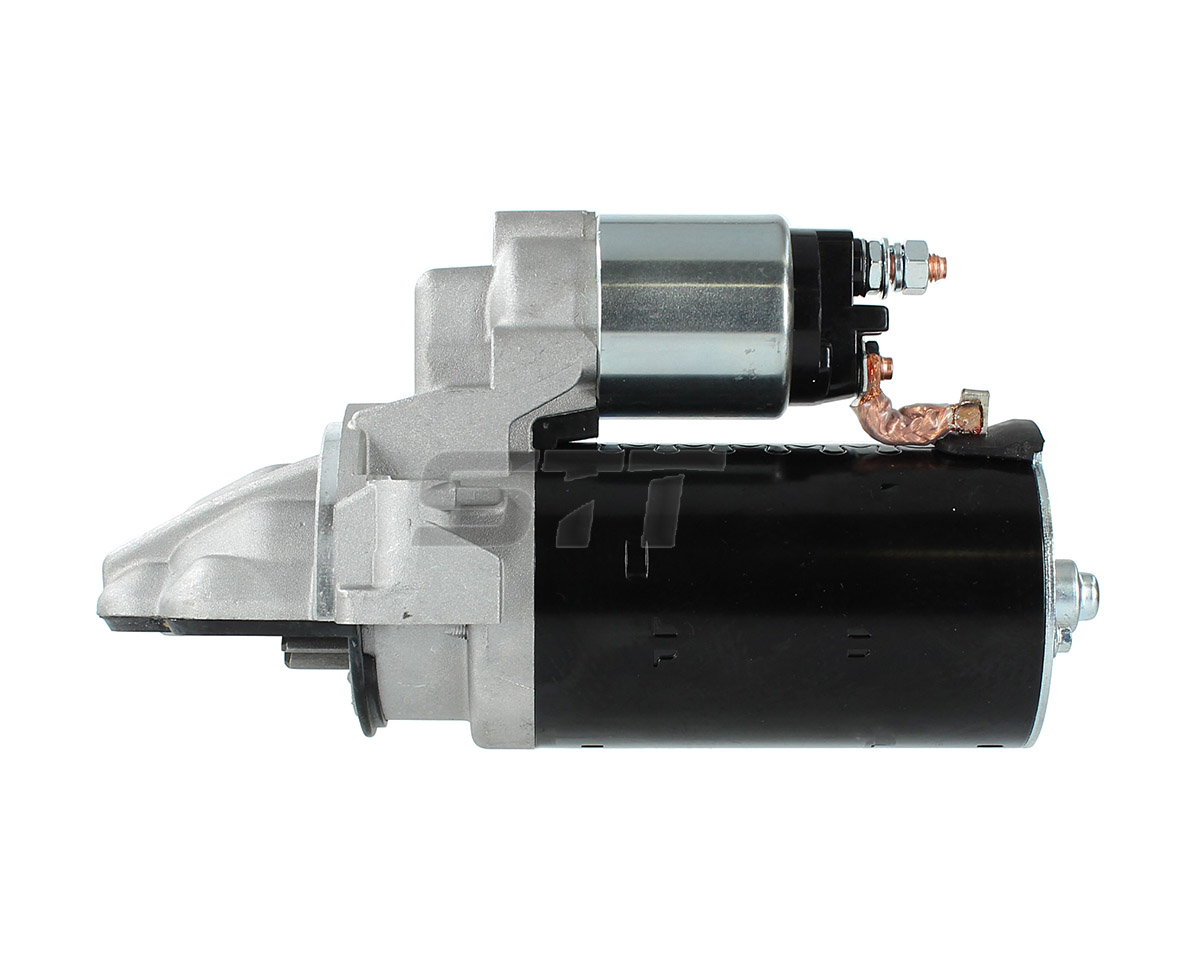

Starter for CITROEN , FIAT , PEUGEOT ,FORD 2.2 Diesel P22DTE 2006-on
101-002
12V 2.0KW 12T CW
Specification
| Volt | 12V |
| Power | 2.0KW |
| Teeth | 12T |
| Rotation | CW |
OE NO
| BOSCH | 0001109205 |
Ref No
| CITROEN | 9658144780 |
| FIAT | 96581447 |
| FORD | 6C1T-11000-AB |
| PEUGEOT | 5802AS |
| Lester | 33243 |
| LUCAS | LRS02243 |
Adapted models
| CITROEN | Jumper 2.2 HDi [4HU(P22DTE)] 2006- |
| FIAT | Ducato 2.2 Multijet [4HV] 2006- |
| FORD | Transit 2.2 TDCi [DRFA] 2011- |
| LAND ROVER | Defender 2.2 [ZSD422] 2011- |
| PEUGEOT | Boxer 2.2 HDi [4HG(P22DTE)] 2011- |
Components
Mounting type
| Mount Hole Dia | 10.5mm, 10.5mm |
| Flange Dia | 89mm |
| Mount Holes Cnt to Cnt | 88.5mm |
| Pinion Dia | 39mm |
| Out of Mesh Clearance | 17mm |
| Overall Length | 256.5mm |
| HSG Length | 194.5mm |
| Rest Position B | 145mm |
| S terminal size | M6 |
| B+ terminal size | M8 |
| WEIGHT KG |
