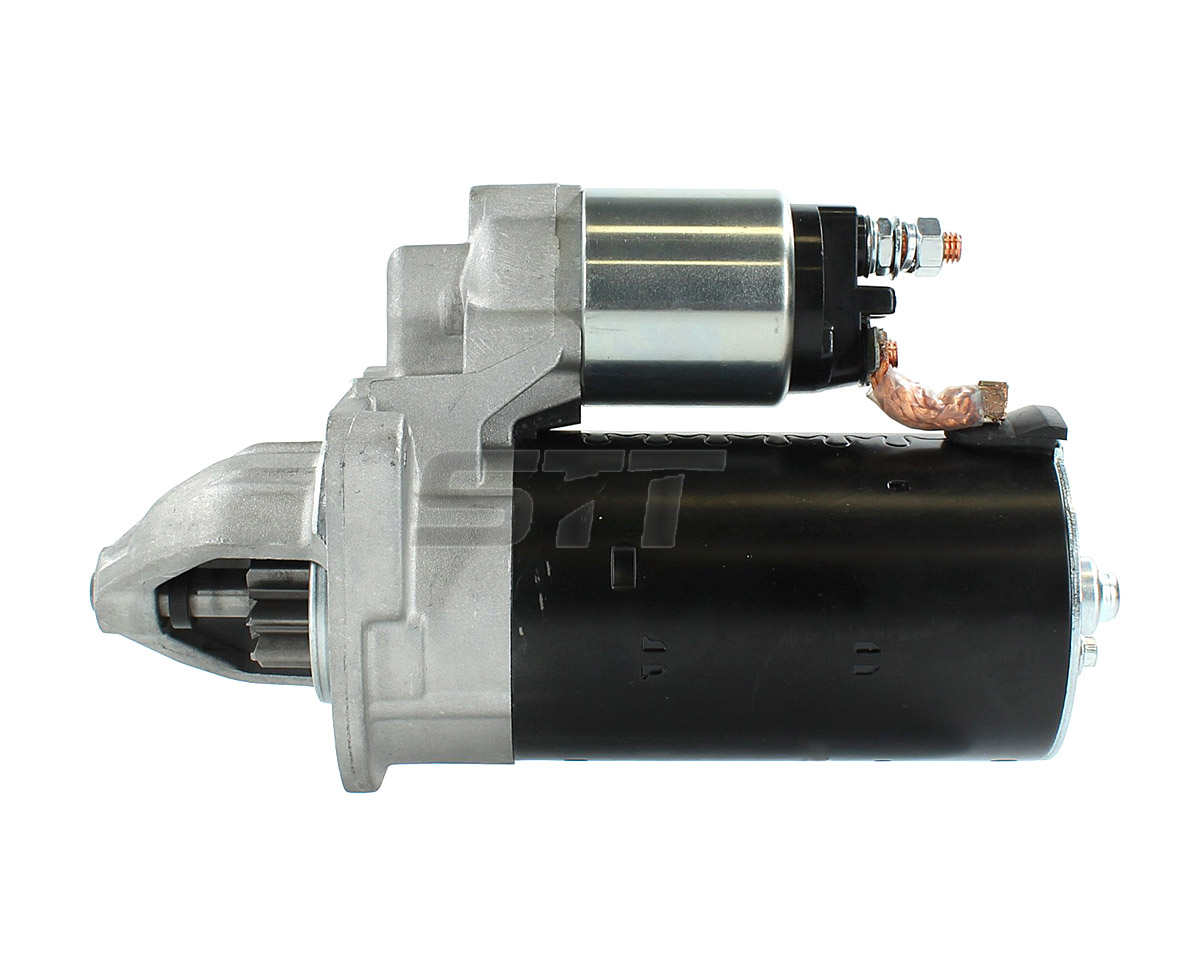

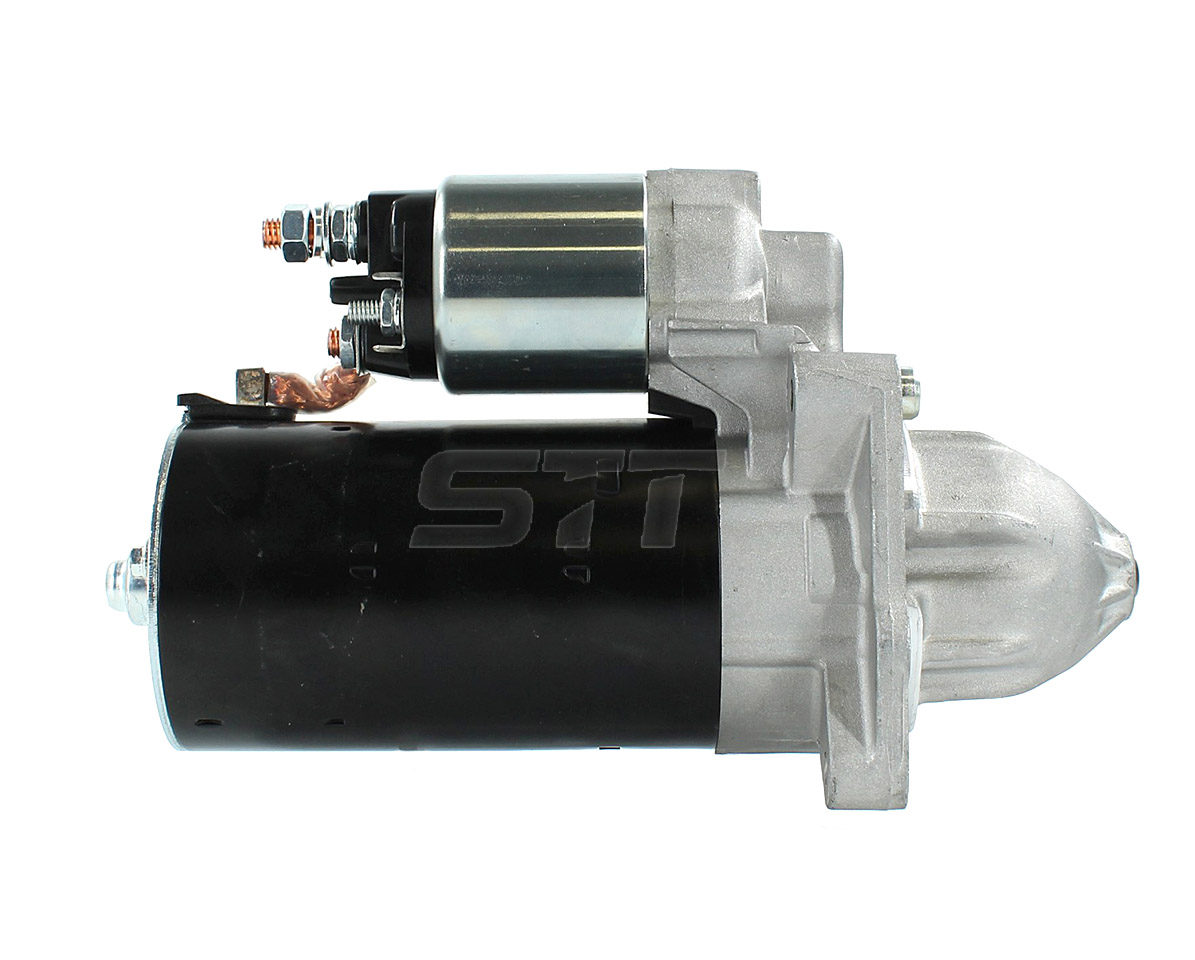

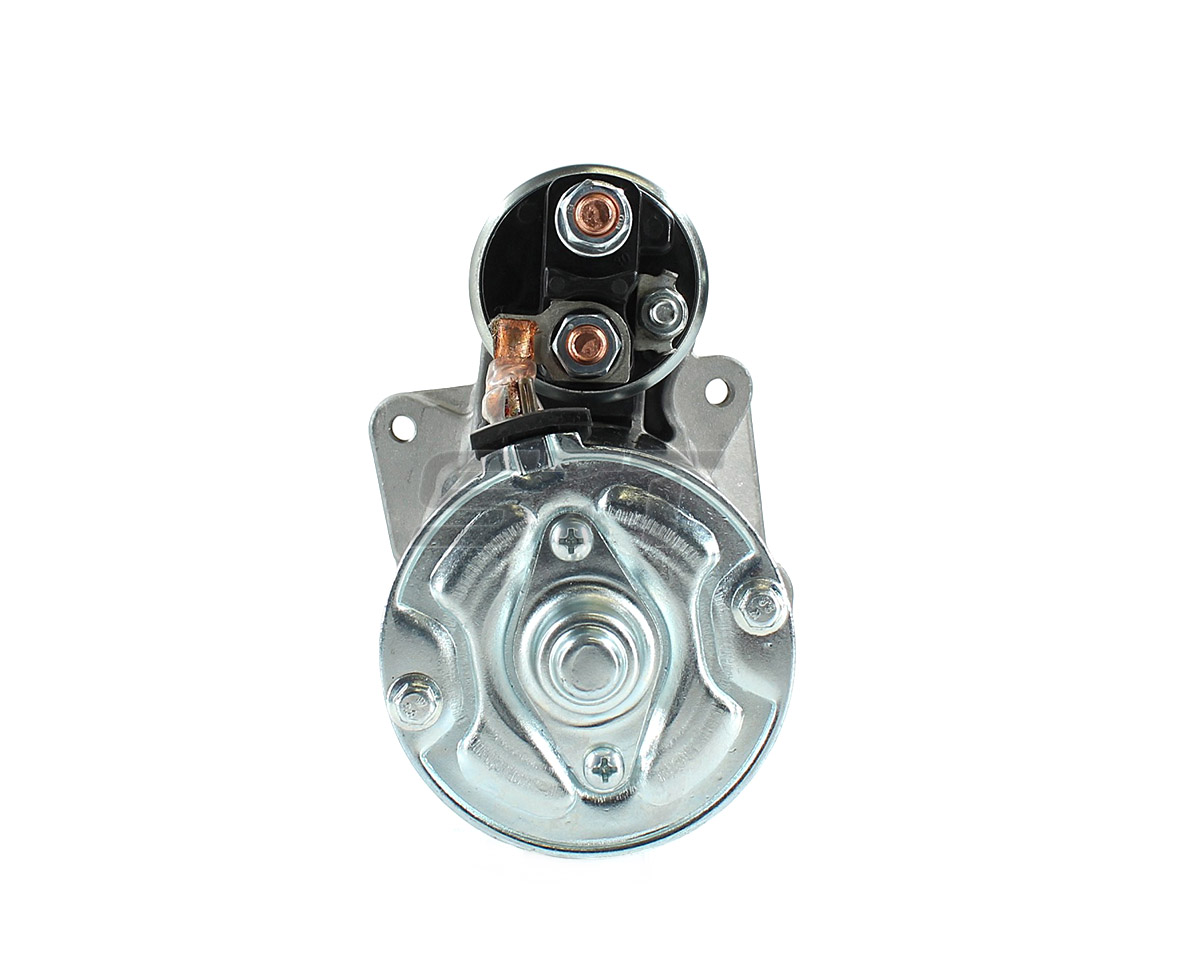

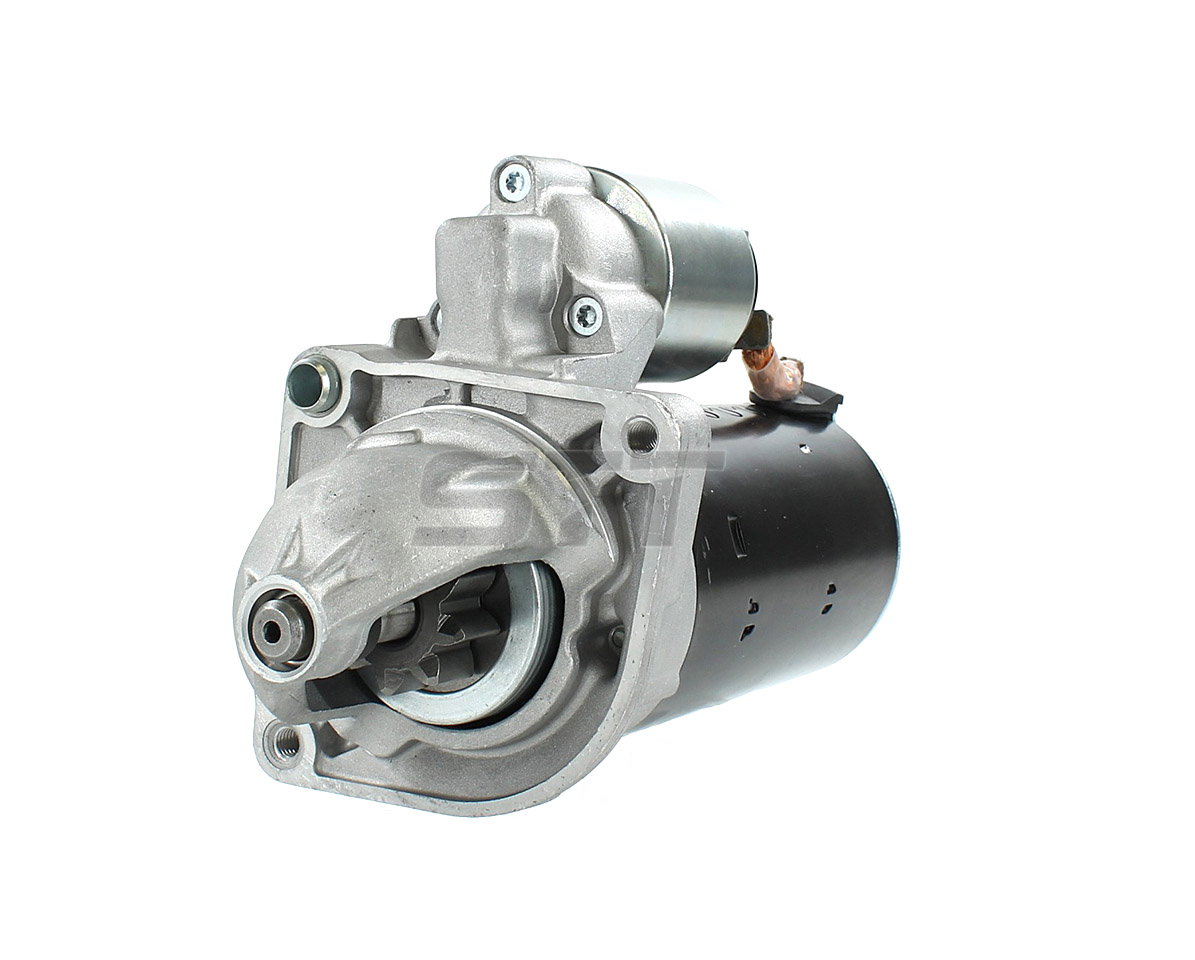

Starter for CITROEN JUMPER, FIAT DUCATO, PEUGEOT 2.3/2.8/3.0D 2000-15
101-129
12V 2.5KW 9T CW
Specification
| Volt | 12V |
| Power | 2.5KW |
| Teeth | 9T |
| Rotation | CW |
OE NO
| BOSCH | 0001109302 |
Ref No
| FIAT | 51779086 |
| PEUGEOT | 5802AY |
| Lester | 33318 |
| LUCAS | LRS02318 |
Adapted models
| FIAT | Ducato 120 Multijet 2.3 D [FPT] 2006- |
| CITROEN | Jumper 3.0 HDi 145 [F1CE3481N(F30DTE)] 2010- |
| PEUGEOT | Boxer 3.0 HDi 145 [F1CE3481N(F30DTE)] 2010- |
Components
Mounting type
| Mount Hole Dia | M8,M8,M8 |
| Flange Dia | 82mm |
| Mount Holes Cnt to Cnt | 116*82*82mm |
| Pinion Dia | 36mm |
| Out of Mesh Clearance | 23.5mm |
| Overall Length | 248mm |
| HSG Length | 185mm |
| Rest Position B | 147mm |
| S terminal size | M6 |
| B+ terminal size | M8 |
| WEIGHT KG |
