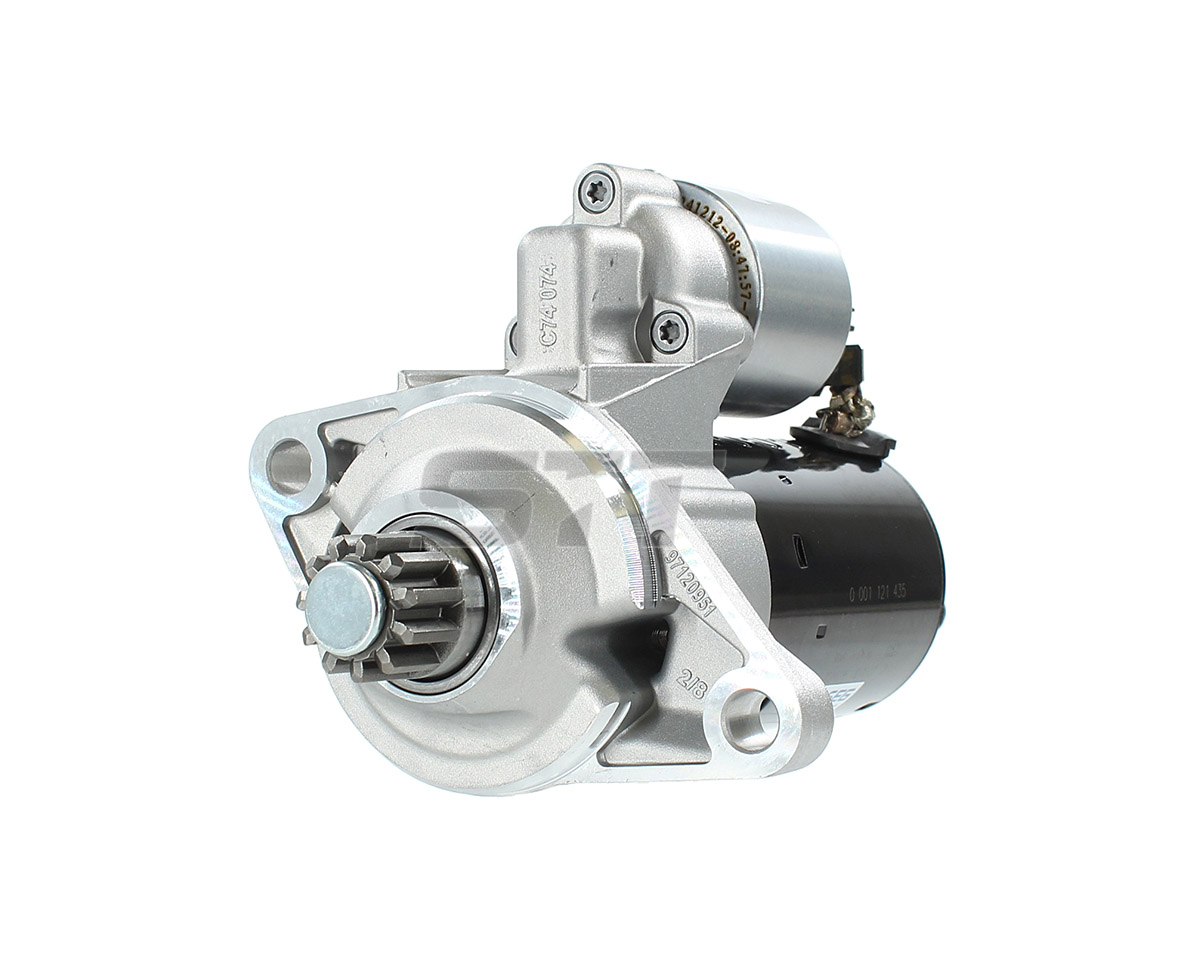

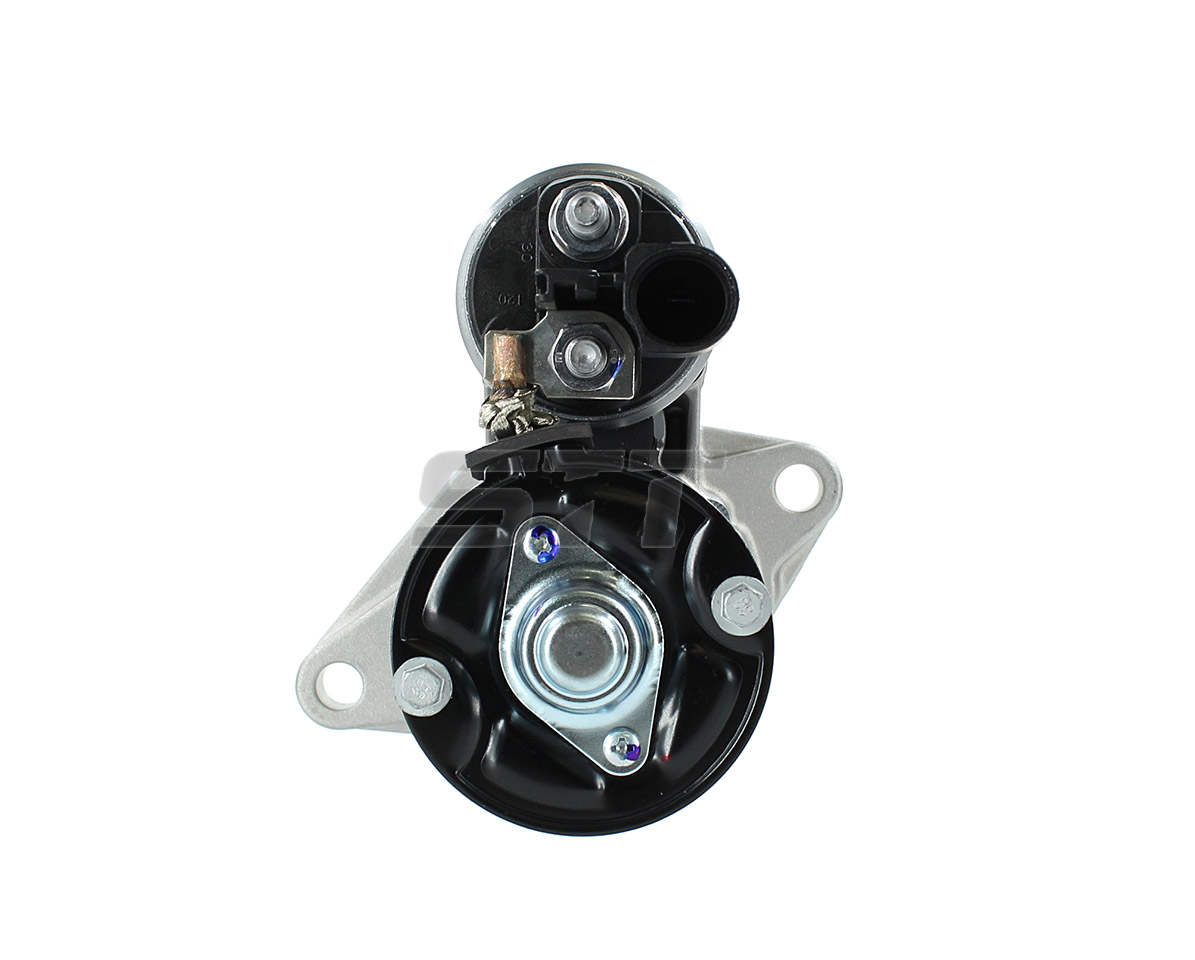

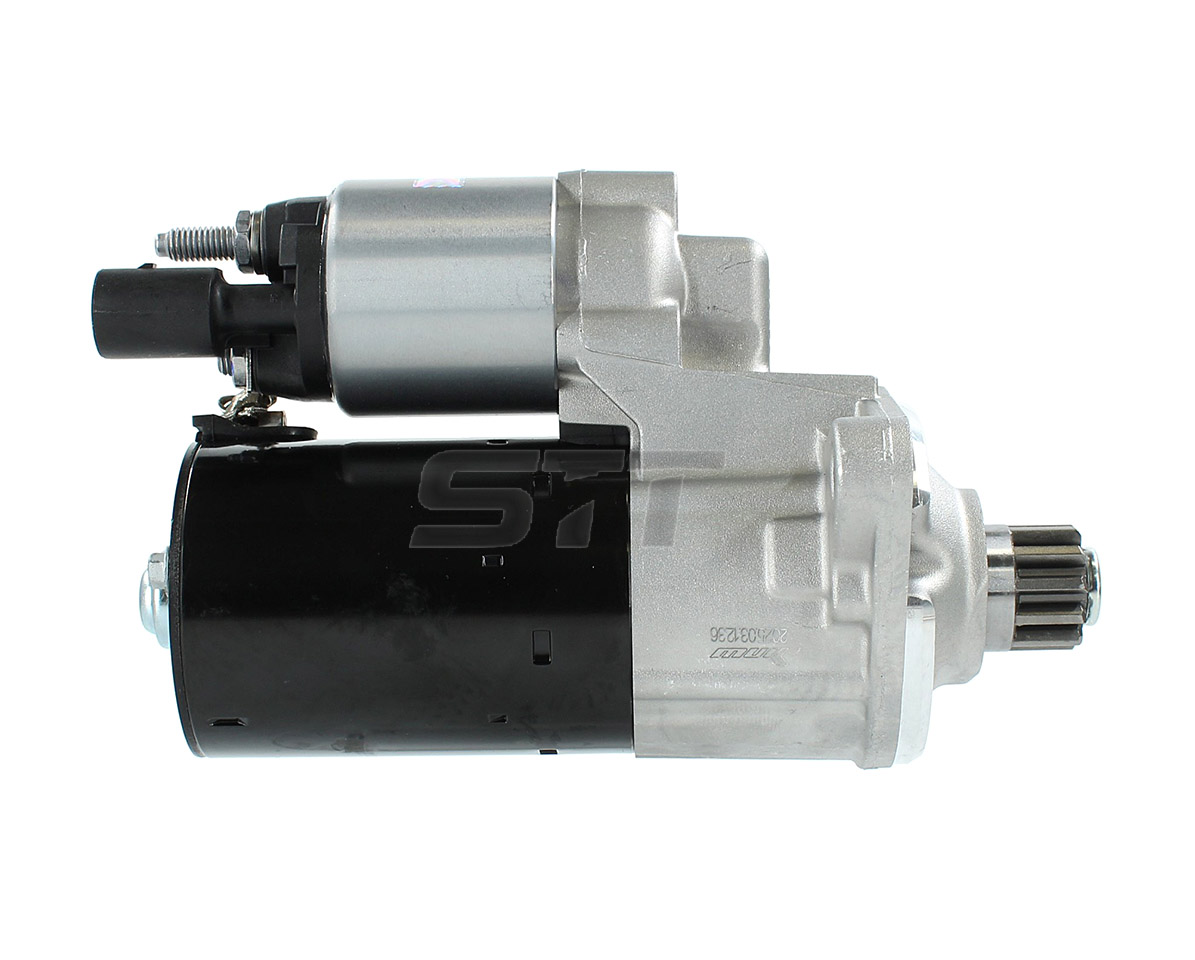

Starter for AUDI A3, TT,Q3,SEAT, SKODA, VW PASSAT 1.8/2.0L 2010--
101-338
12V 1.1KW 11T CCW
Specification
| Volt | 12V |
| Power | 1.1KW |
| Teeth | 11T |
| Rotation | CCW |
OE NO
| BOSCH | 0001121435 |
Ref No
| BOSCH | 0001121436 |
| VW | 02E911023S |
| Lester | 19214 |
| LUCAS | LRS02547 |
Adapted models
| AUDI | A3 1.8 TFSi [CNSB] 2013- |
| SEAT | Leon 2.0 TFSi [CCZB] 2009- |
| SKODA | Yeti 1.8 TSi [CDAB] 2009- |
| VW | Jetta 2.0 TSi [CCZA] 2011- |
| VW | Tiguan 2.0 TSi [CCZB] 2011- |
Components
Mounting type
| Mount Hole Dia | 11mm,11mm |
| Flange Dia | 79mm |
| Mount Holes Cnt to Cnt | 119mm |
| Pinion Dia | 28mm |
| Out of Mesh Clearance | 42.5mm |
| Overall Length | 210mm |
| HSG Length | 165mm |
| Rest Position B | 168mm |
| S terminal size | |
| B+ terminal size | M8 |
| WEIGHT KG |
