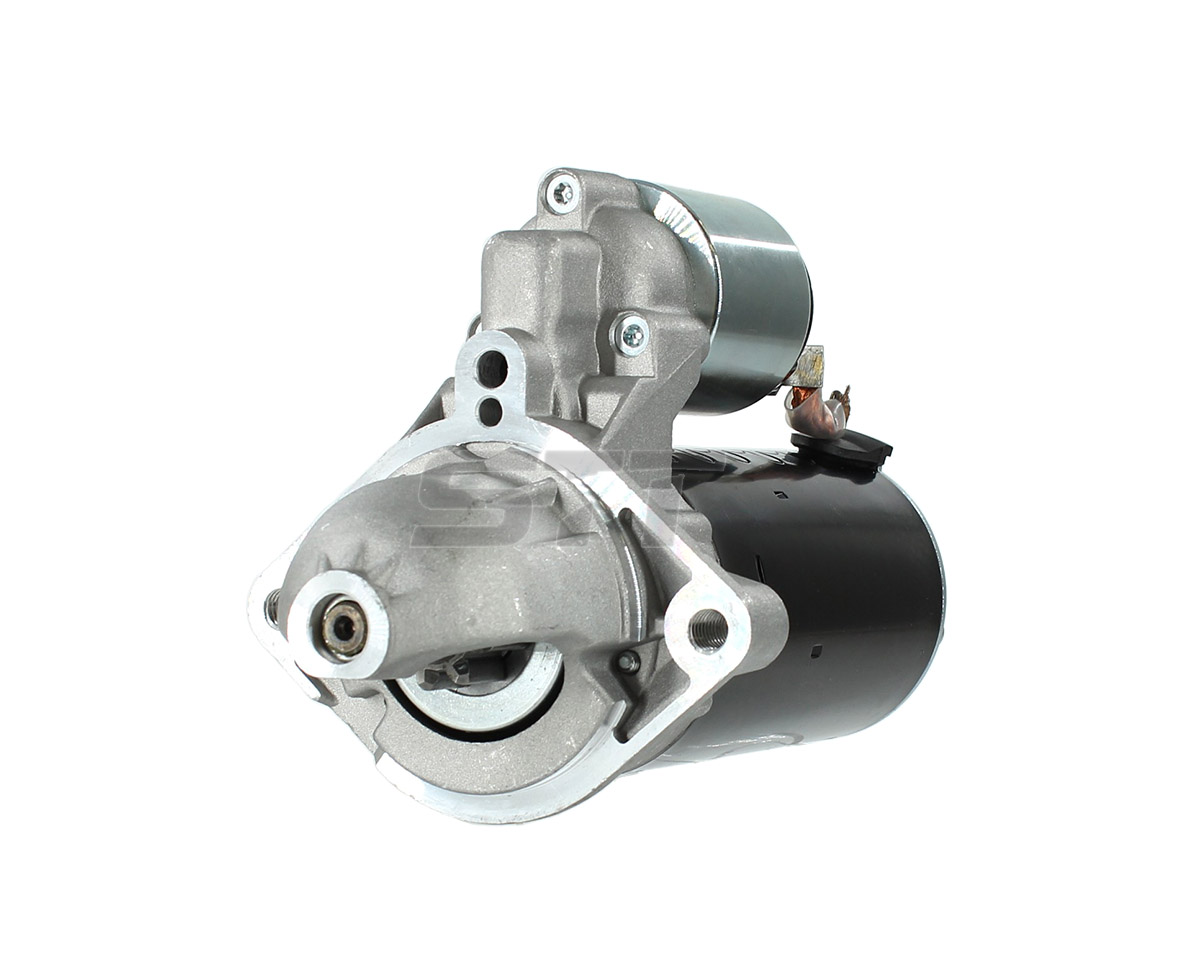

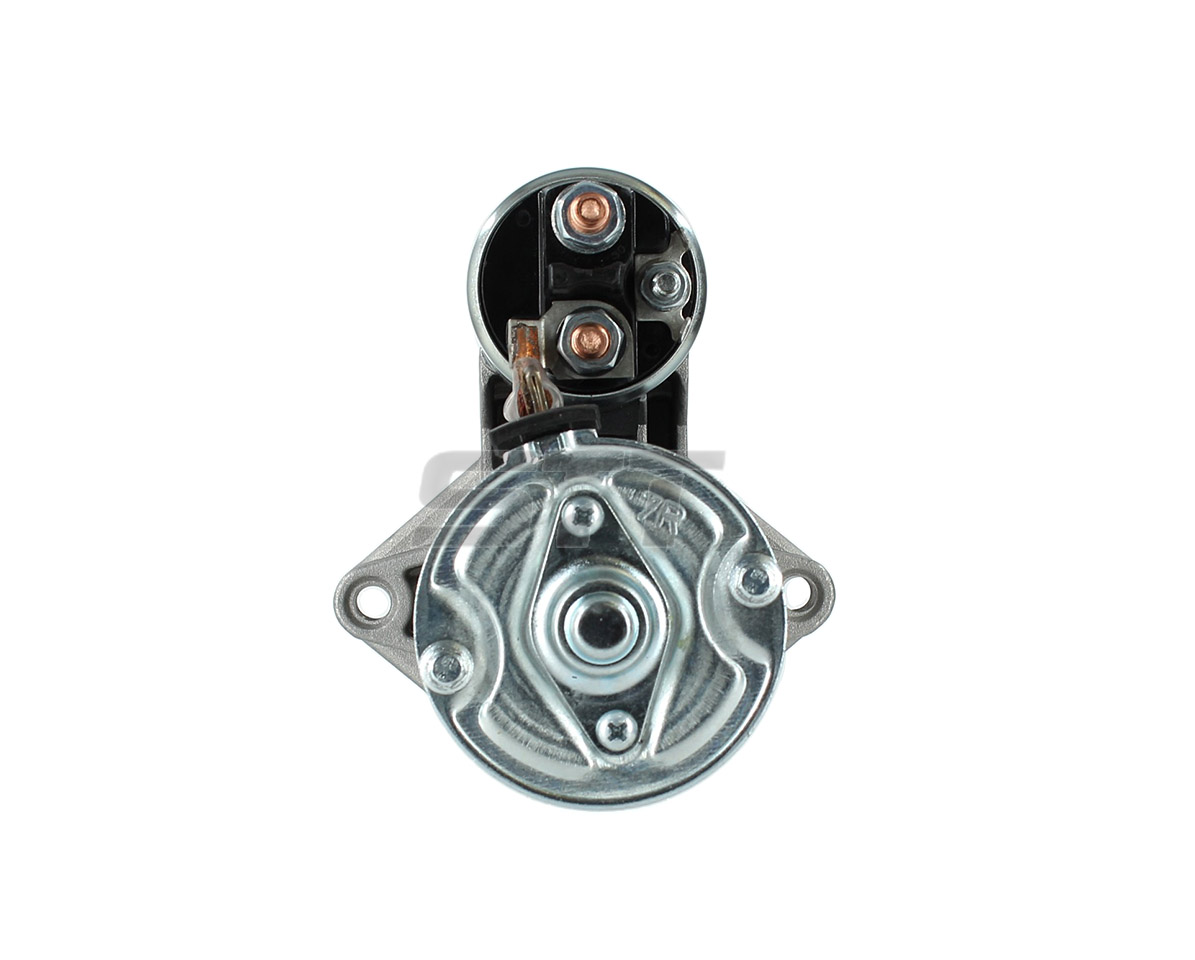

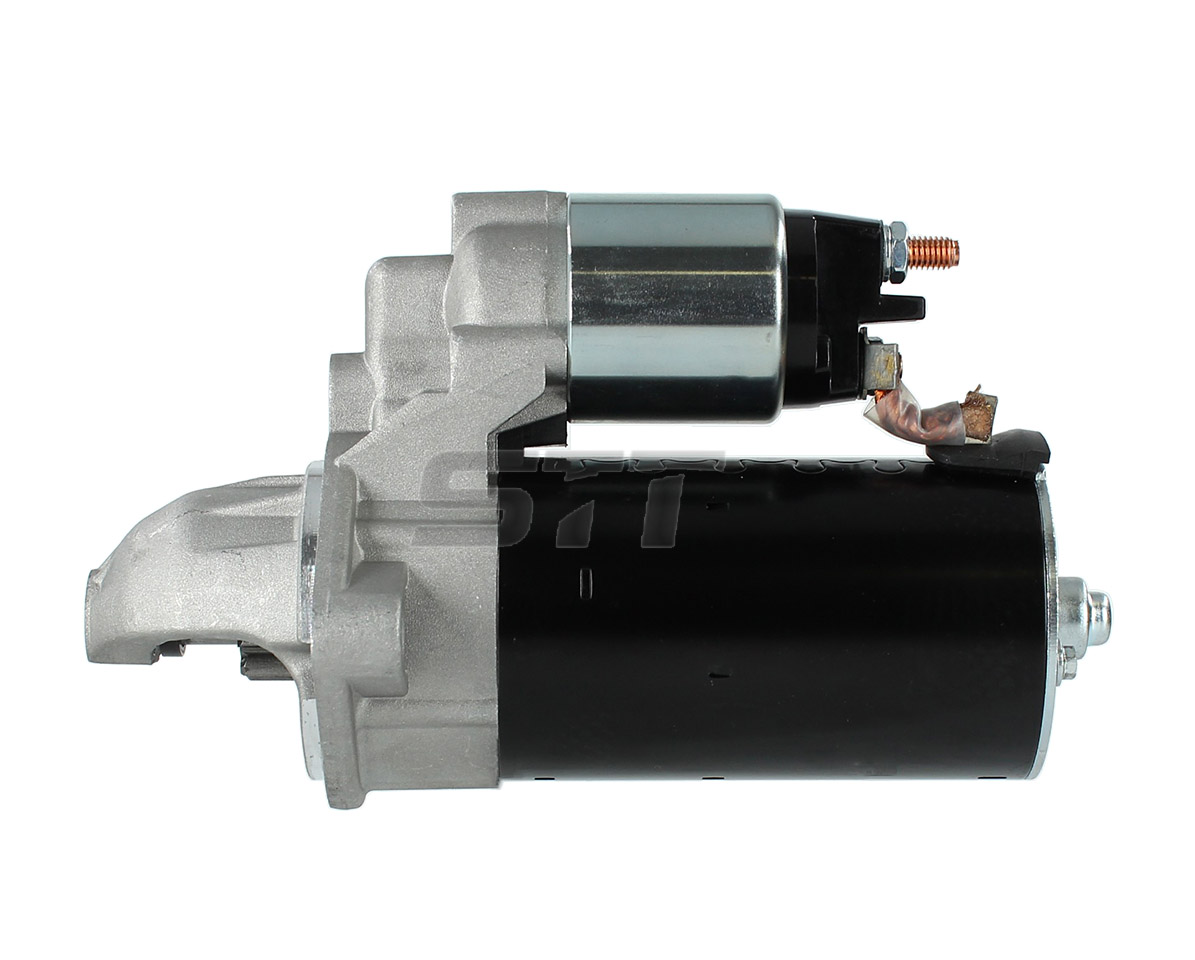

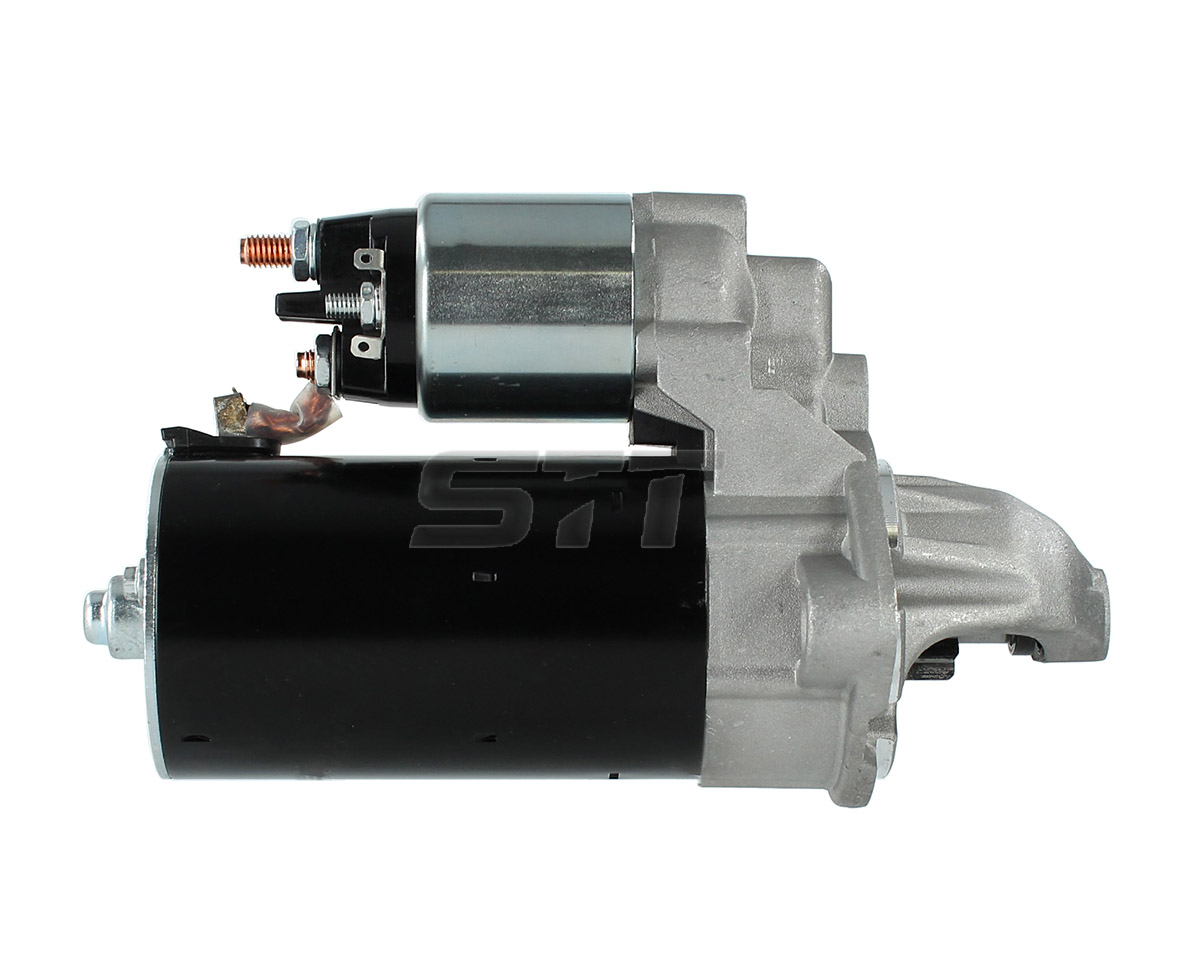

Starter for BMW 1 series,3 Series,5 Series,X3 2.0/3.0Diesel 2003-11
101-340
12V 1.8KW 9T CW
Specification
| Volt | 12V |
| Power | 1.8KW |
| Teeth | 9T |
| Rotation | CW |
OE NO
| BOSCH | 0001115040 |
Ref No
| BOSCH | 0001115041 |
| BMW | 12417794952 |
| Lester | 32802 |
| LUCAS | LRS02224 |
Adapted models
| BMW | 118 2.0D (1E81)[N47D20A] 2004-2012 |
| BMW | 530 3.0D xDrive (E60)[M57306D3] 2005- |
| BMW | X3 3.0D sDrive (E83)[M57D30(306D5)] 2006- |
Components
Mounting type
| Mount Hole Dia | M10,M10 |
| Flange Dia | 74mm |
| Mount Holes Cnt to Cnt | 105mm |
| Pinion Dia | 29mm |
| Out of Mesh Clearance | 21mm |
| Overall Length | 234.5mm |
| HSG Length | 178mm |
| Rest Position B | 145.5mm |
| S terminal size | M6 |
| B+ terminal size | M8 |
| WEIGHT KG |
