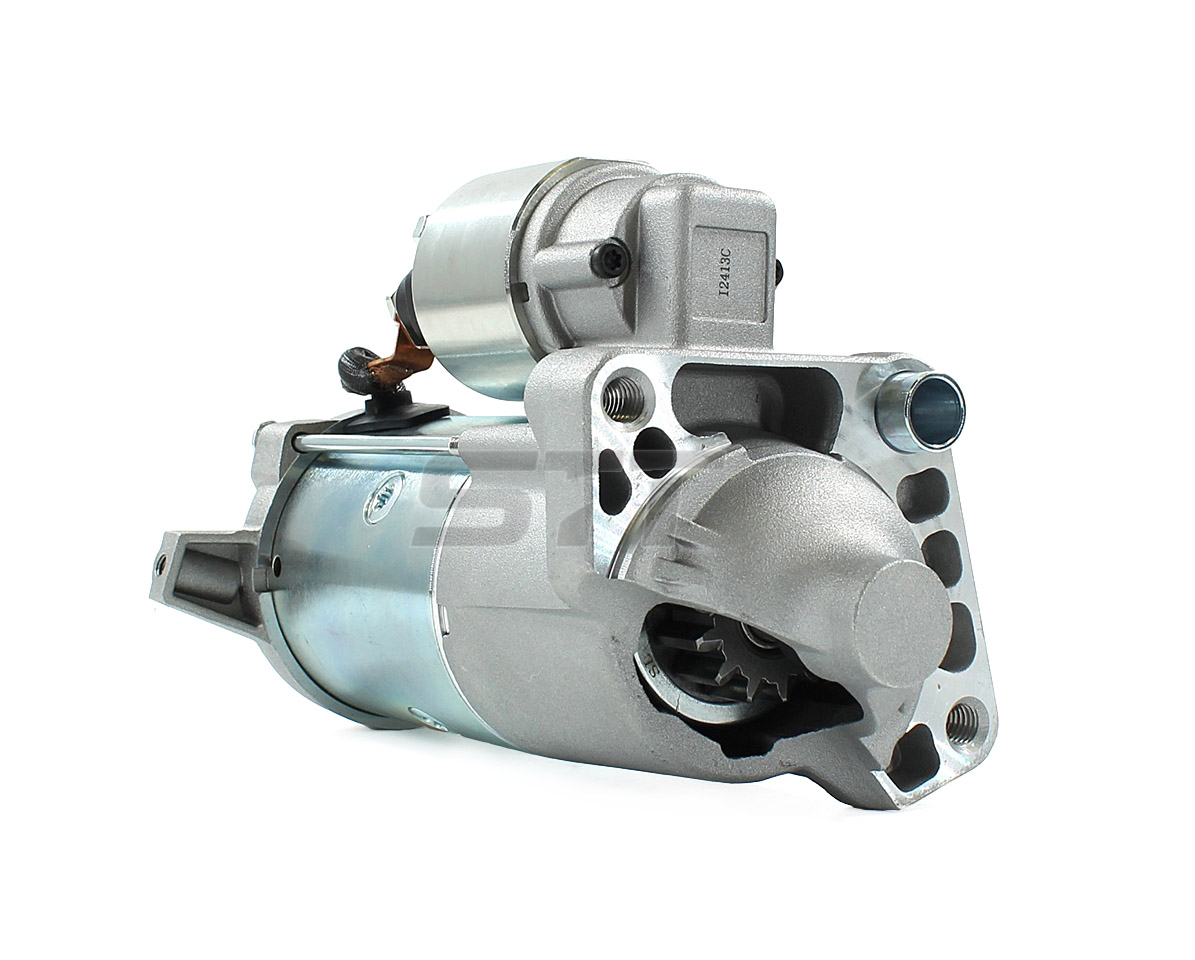

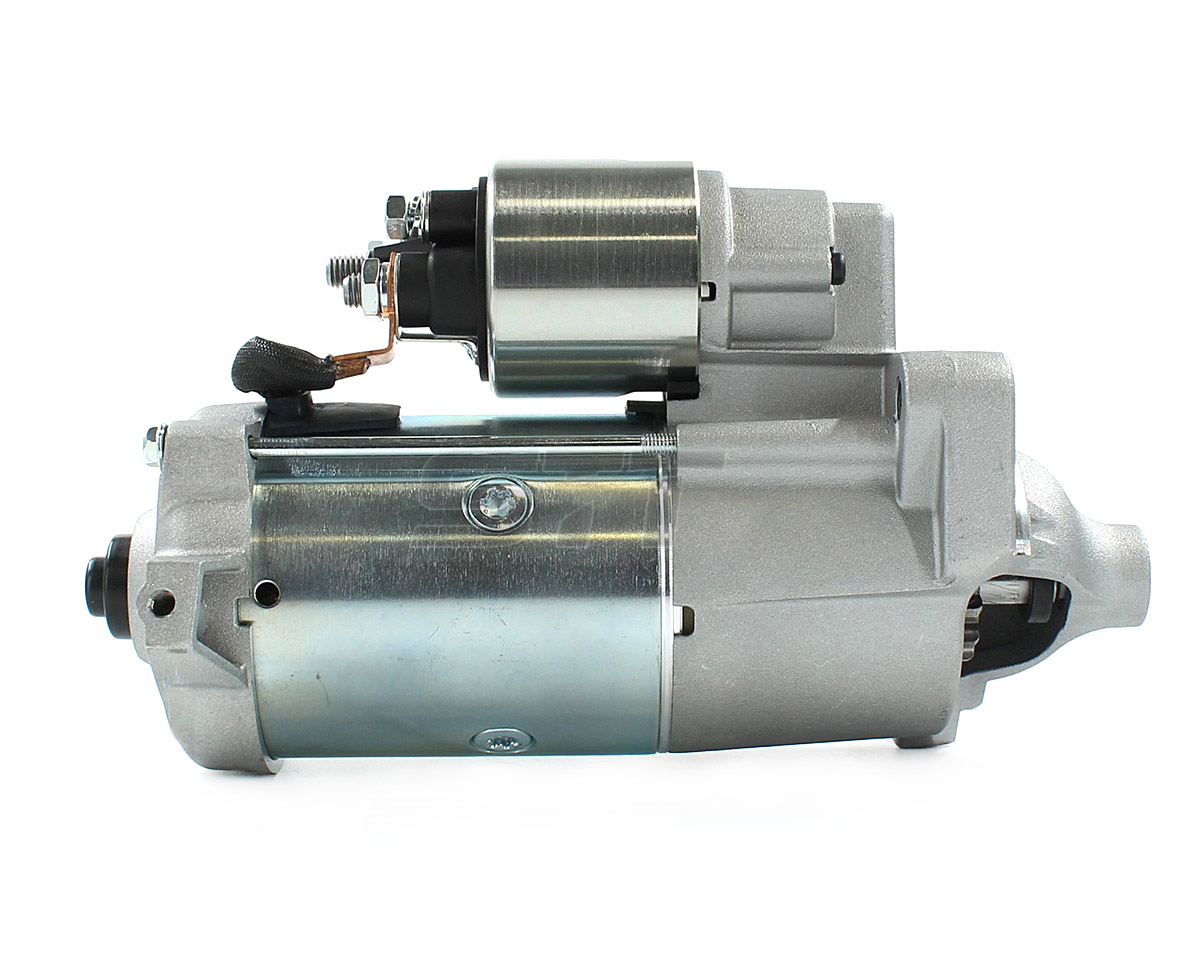

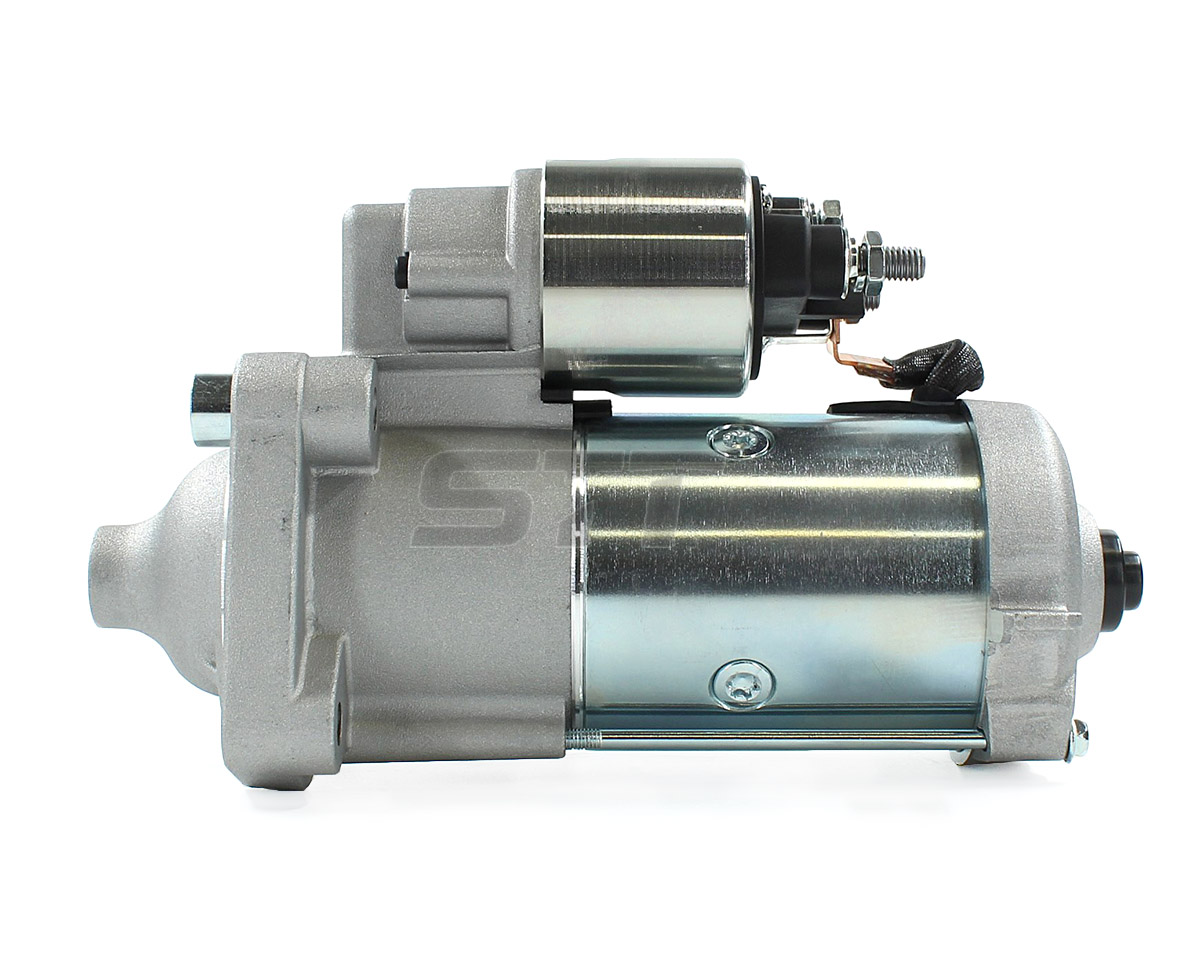

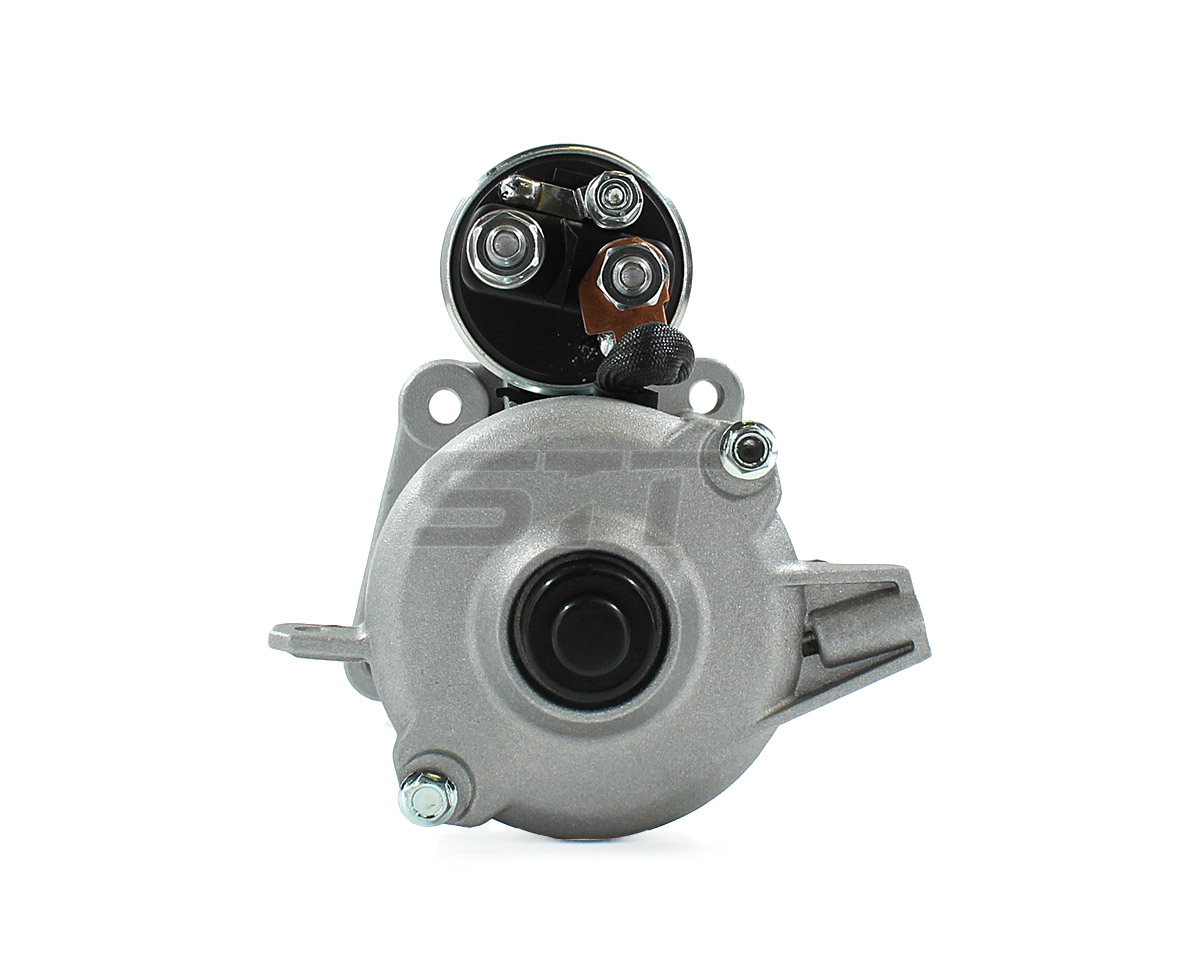

Specification
| Volt | 12V |
| Power | 2.2KW |
| Teeth | 13T |
| Rotation | CW |
OE NO
| VALEO | ESW22E3 |
Ref No
| VOLVO | 30659576 |
| LESTER | 16036 |
| LUCAS | LRS03813 |
Adapted models
| VOLVO | S60 2.0D (134) D4204T20 2015-18 |
| VOLVO | S80 2.0D4 (124) D4204T5 2013- 15 |
| VOLVO | V60 2.0D(225) D4204T4 2018-21 |
Components
Mounting type
| Mount Hole Dia | M10, M10, M10 |
| Flange Dia | 76mm |
| Mount Holes Cnt to Cnt | 105.5mm |
| Pinion Dia | 37mm |
| Out of Mesh Clearance | -1.5mm |
| Overall Length | 236mm |
| HSG Length | 199mm |
| Rest Position B | 147mm |
| S terminal size | M6 |
| B+ terminal size | M8 |
| WEIGHT KG | 3.7Kg |
