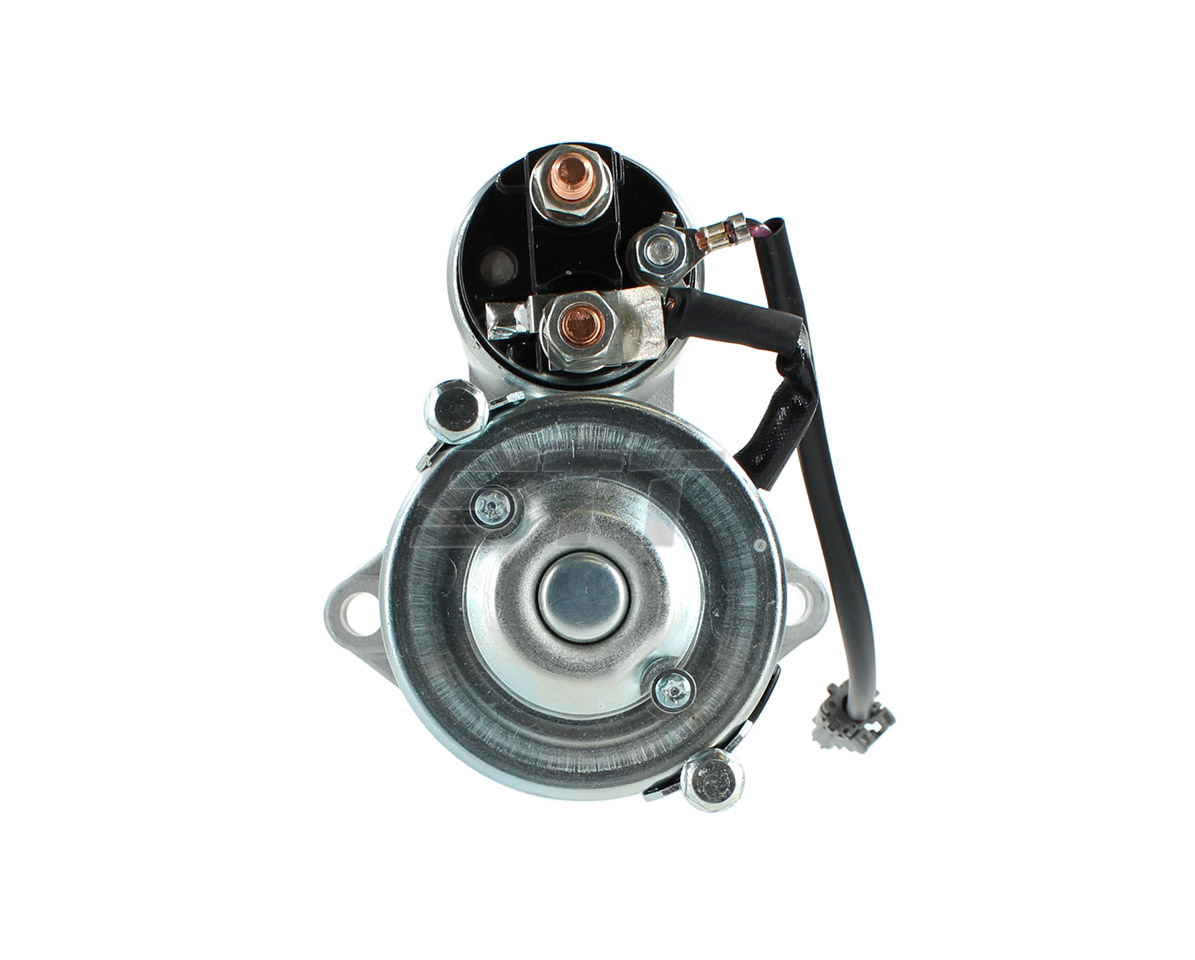

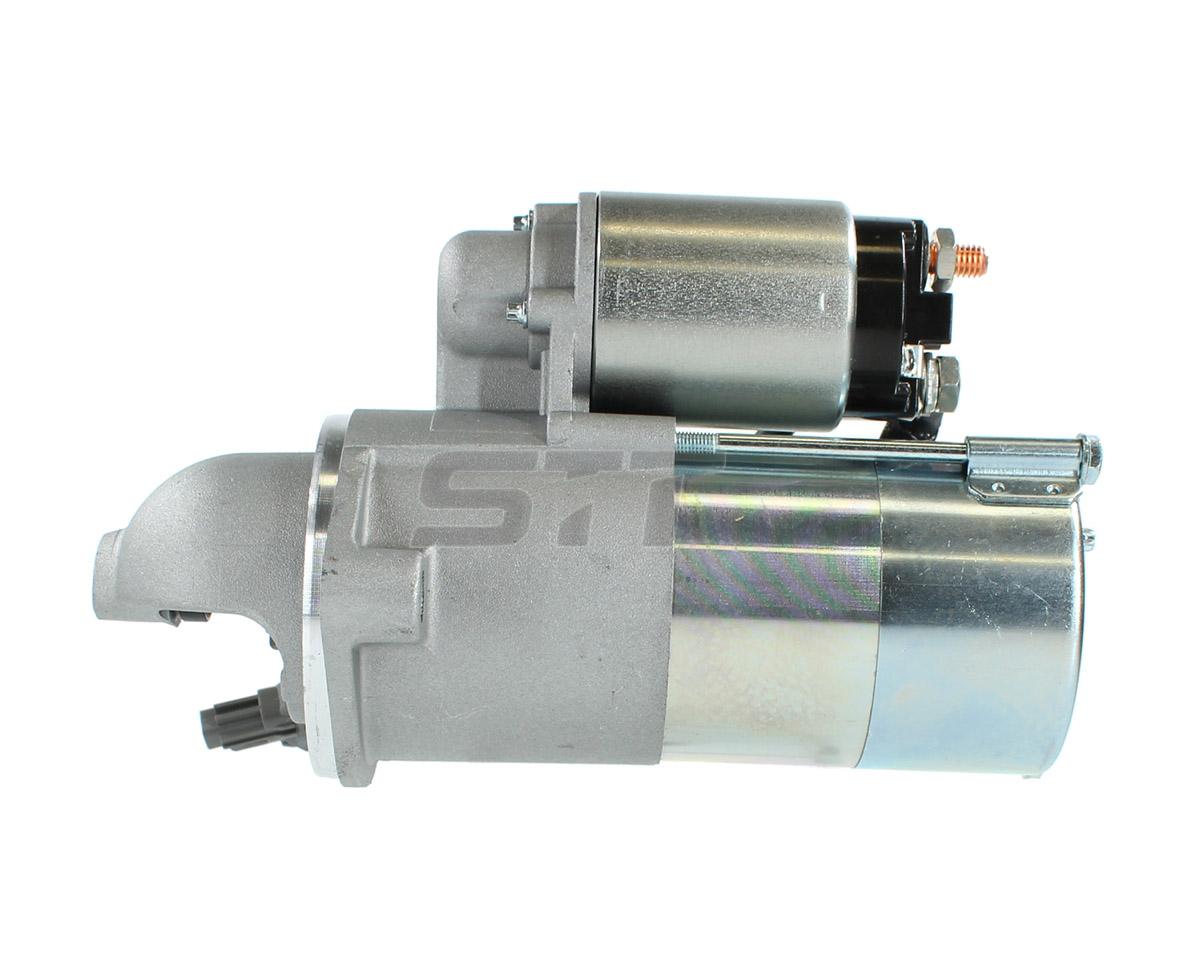

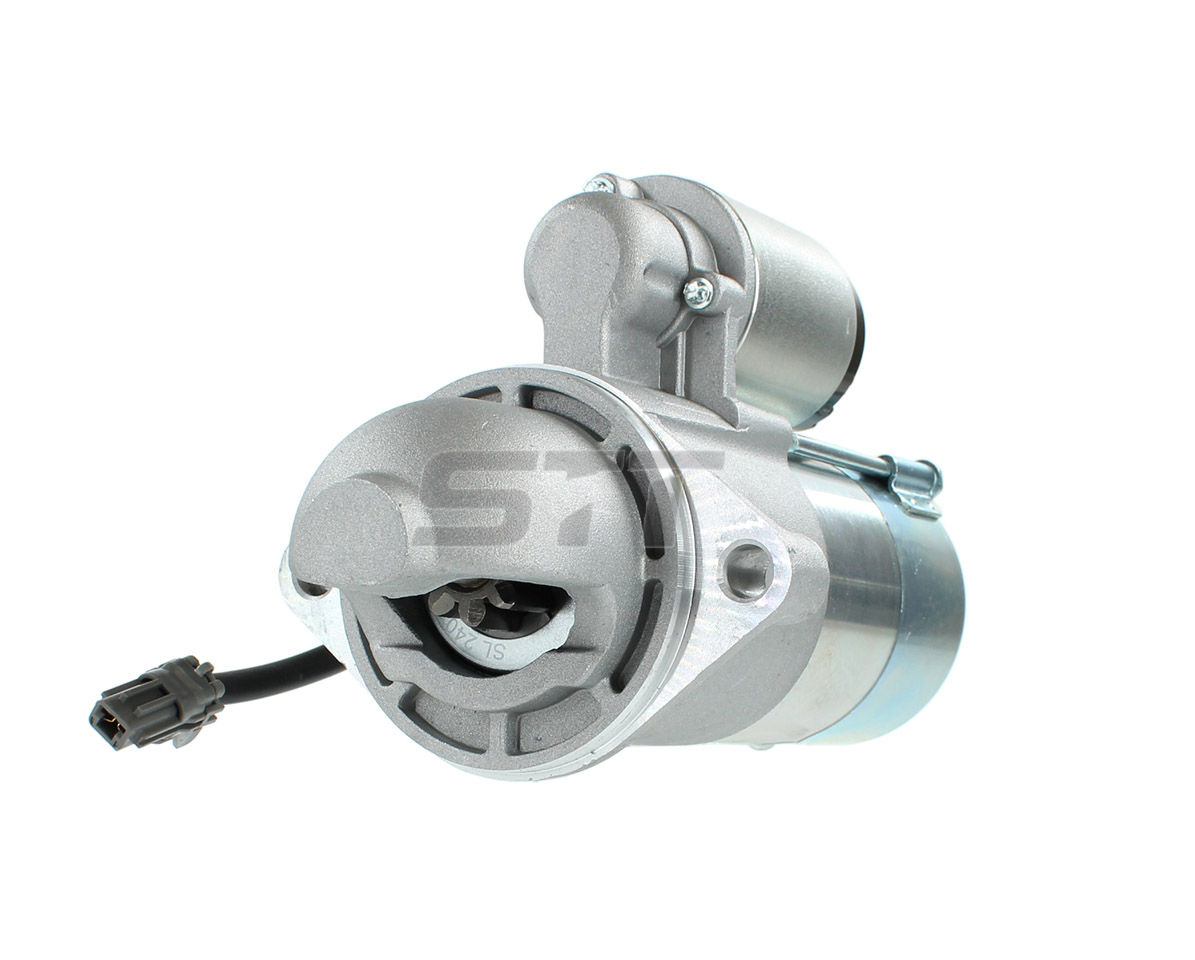

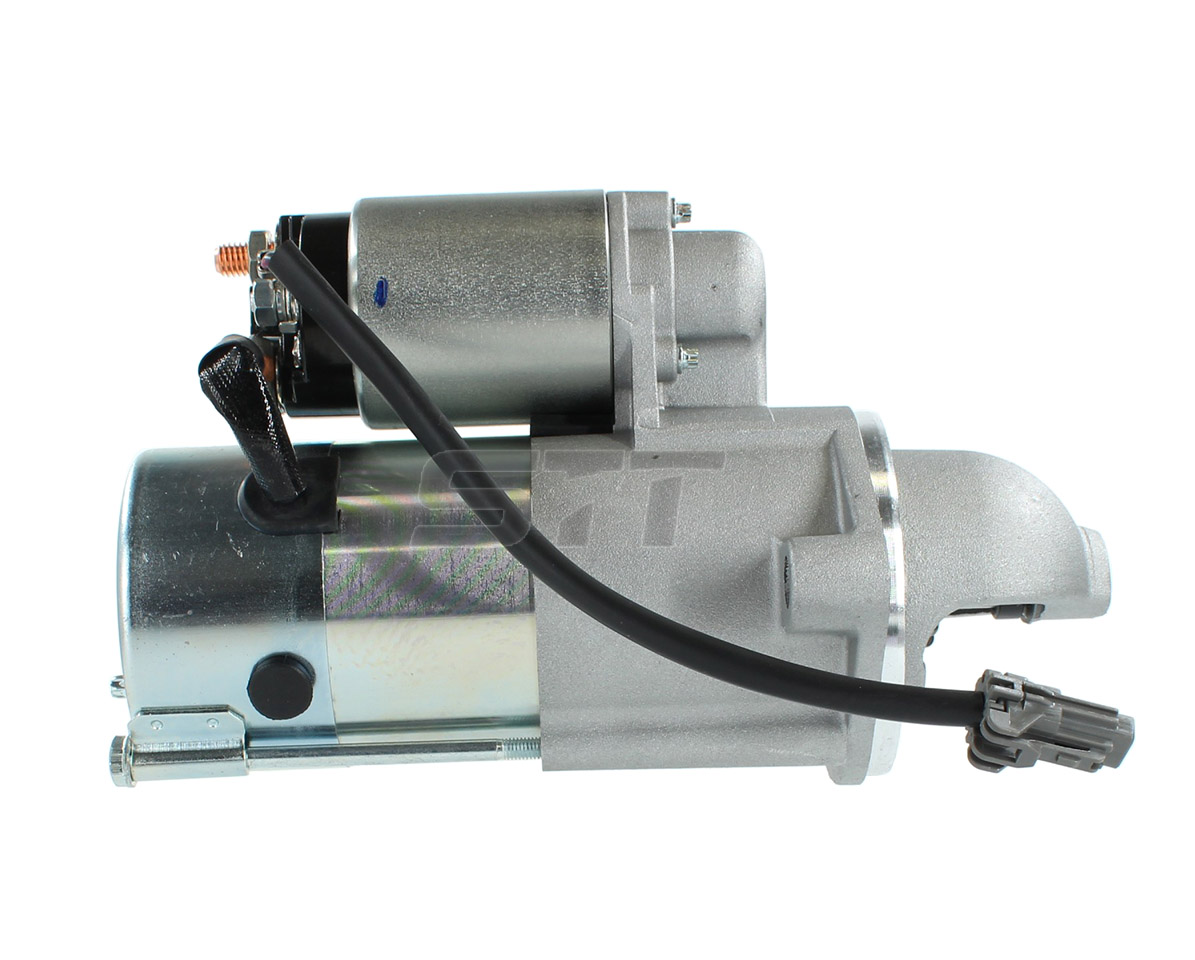

Starter for CHEVROLET CAPTIVA , EPICA,OPEL ANTARA 2.0 Diesel 2006-15
117-290
12V 1.8KW 9T CW
Specification
| Volt | 12V |
| Power | 1.8KW |
| Teeth | 9T |
| Rotation | CW |
OE NO
| GM | 96843574 |
Ref No
| GM | 96627034 |
| LESTER | 30339 |
| LUCAS | LRS02314 |
Adapted models
| CHEVROLET | Captiva 2.0D LLW 2006-09 |
| CHEVROLET | Epica 2.0D LLW 2007-11 |
| OPEL | Antara 2.0D Z20DMH 2006-11 |
Components
Mounting type
| Mount Hole Dia | 10.5mm, 10.5mm |
| Flange Dia | 82.5mm |
| Mount Holes Cnt to Cnt | 104mm |
| Pinion Dia | 29mm |
| Out of Mesh Clearance | 18mm |
| Overall Length | 222mm |
| HSG Length | 166mm |
| Rest Position B | 142mm |
| S terminal size | |
| B+ terminal size | M8 |
| WEIGHT KG | 3.5Kg |
