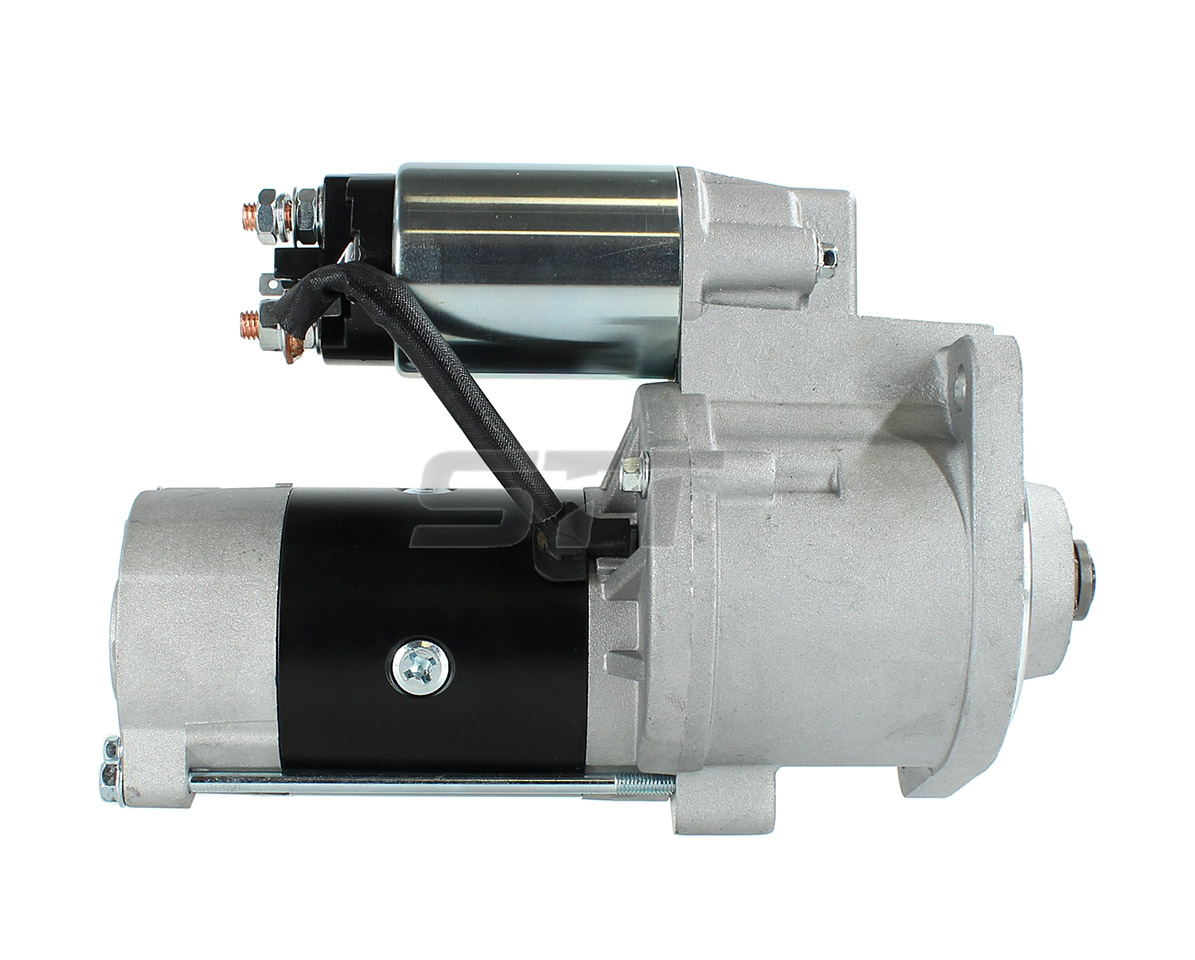

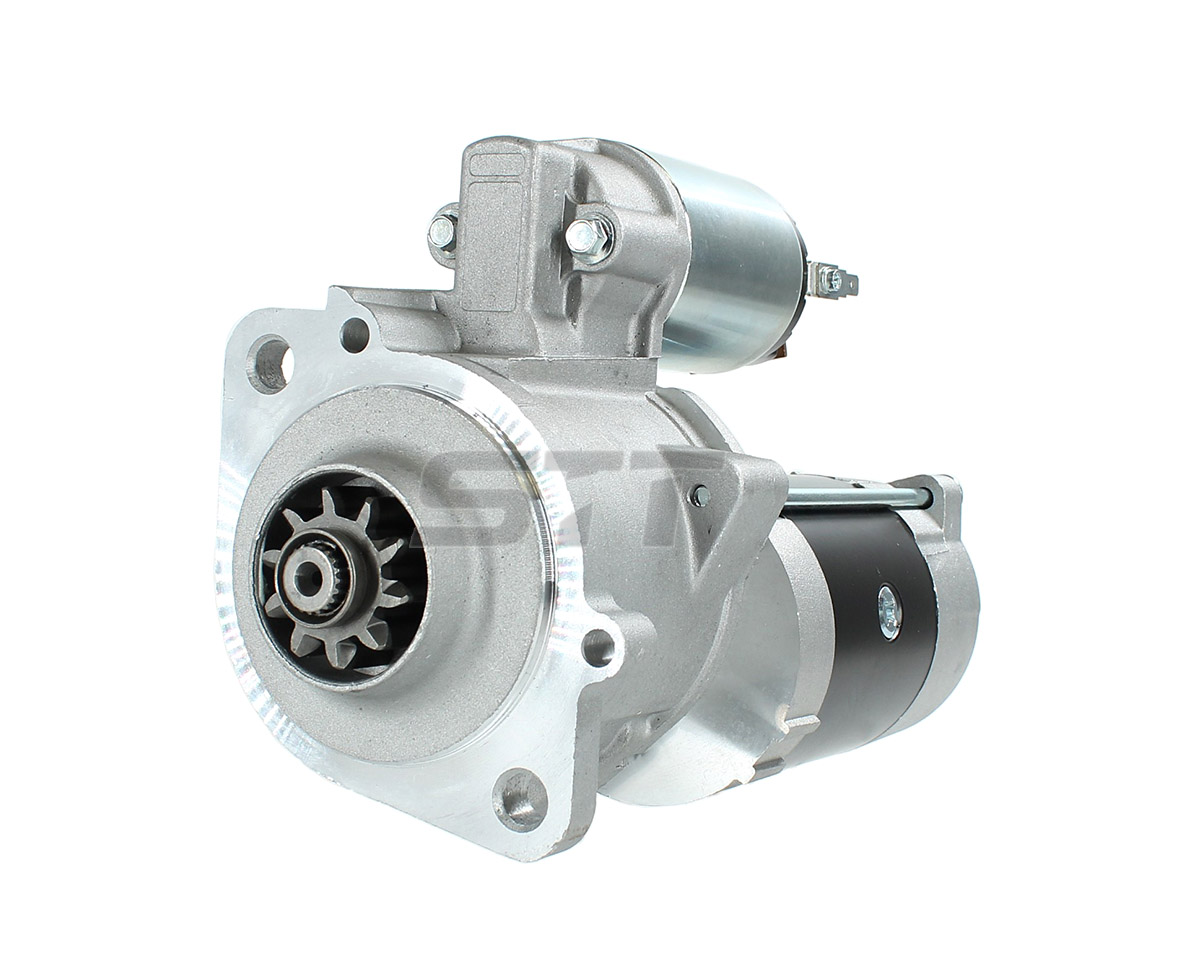

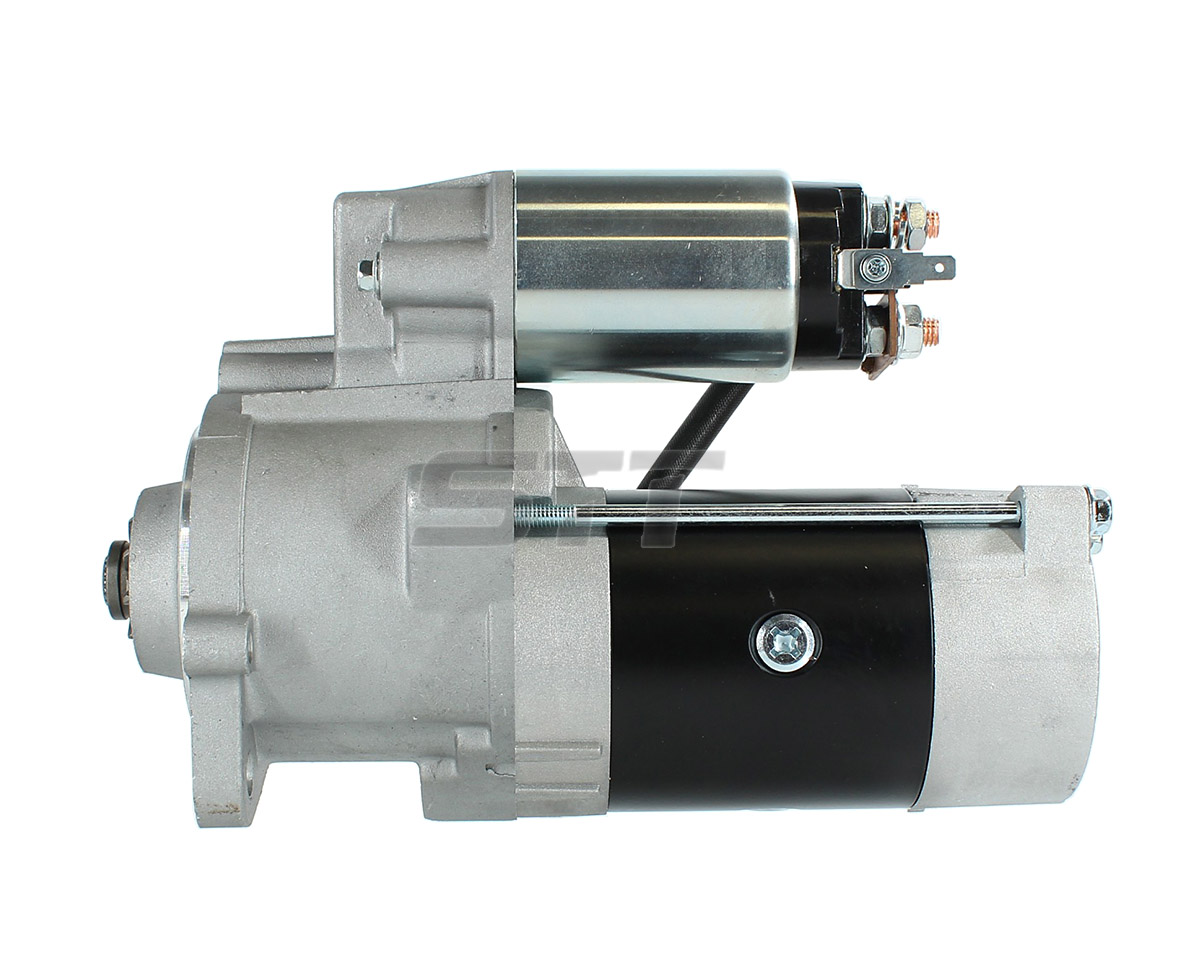

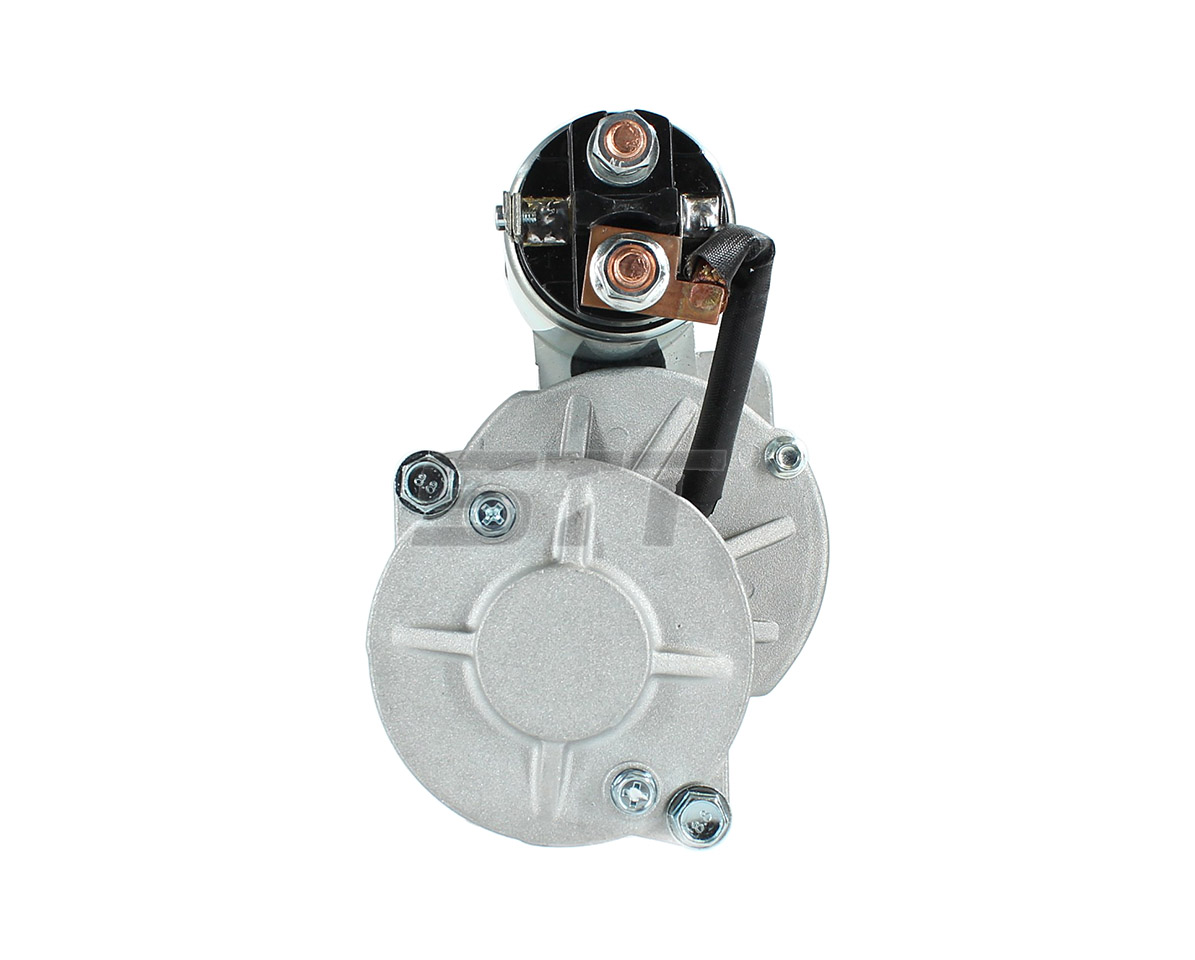

Starter for CATERPILLAR, CLARK,MITSUBISHI FORKLIFT & INDUSTRIAL 1990--
117-1013
12V 2.2KW 10T CW
Specification
| Volt | 12V |
| Power | 2.2KW |
| Teeth | 10T |
| Rotation | CW |
OE NO
| MITSUBISHI | M2T62271 |
Ref No
| MITSUBISHI | 32A66-00100 |
| LESTER | 18163 |
| LUCAS | LRS01468 |
Adapted models
| MITSUBISHI | FORKLIFT 3.3D S4S 1990-- |
Components
Mounting type
| Mount Hole Dia | 11.5mm, 11.5mm |
| Flange Dia | 82.5mm |
| Mount Holes Cnt to Cnt | 114.5mm |
| Pinion Dia | 38.3mm |
| Out of Mesh Clearance | 21.9mm |
| Overall Length | 253mm |
| HSG Length | 222mm |
| Rest Position B | 191mm |
| S terminal size | |
| B+ terminal size | M8 |
| WEIGHT KG | 5.7Kg |
